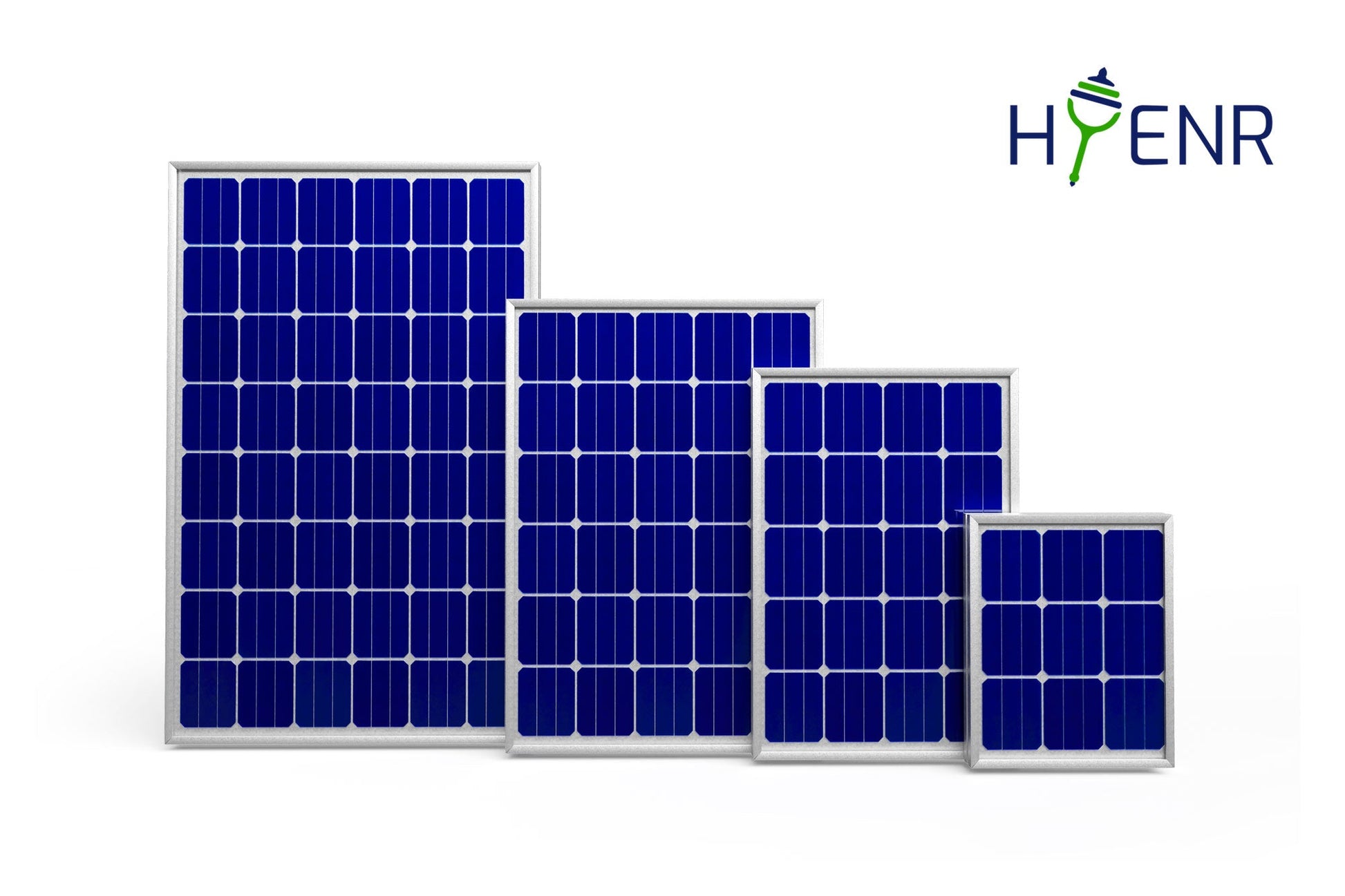

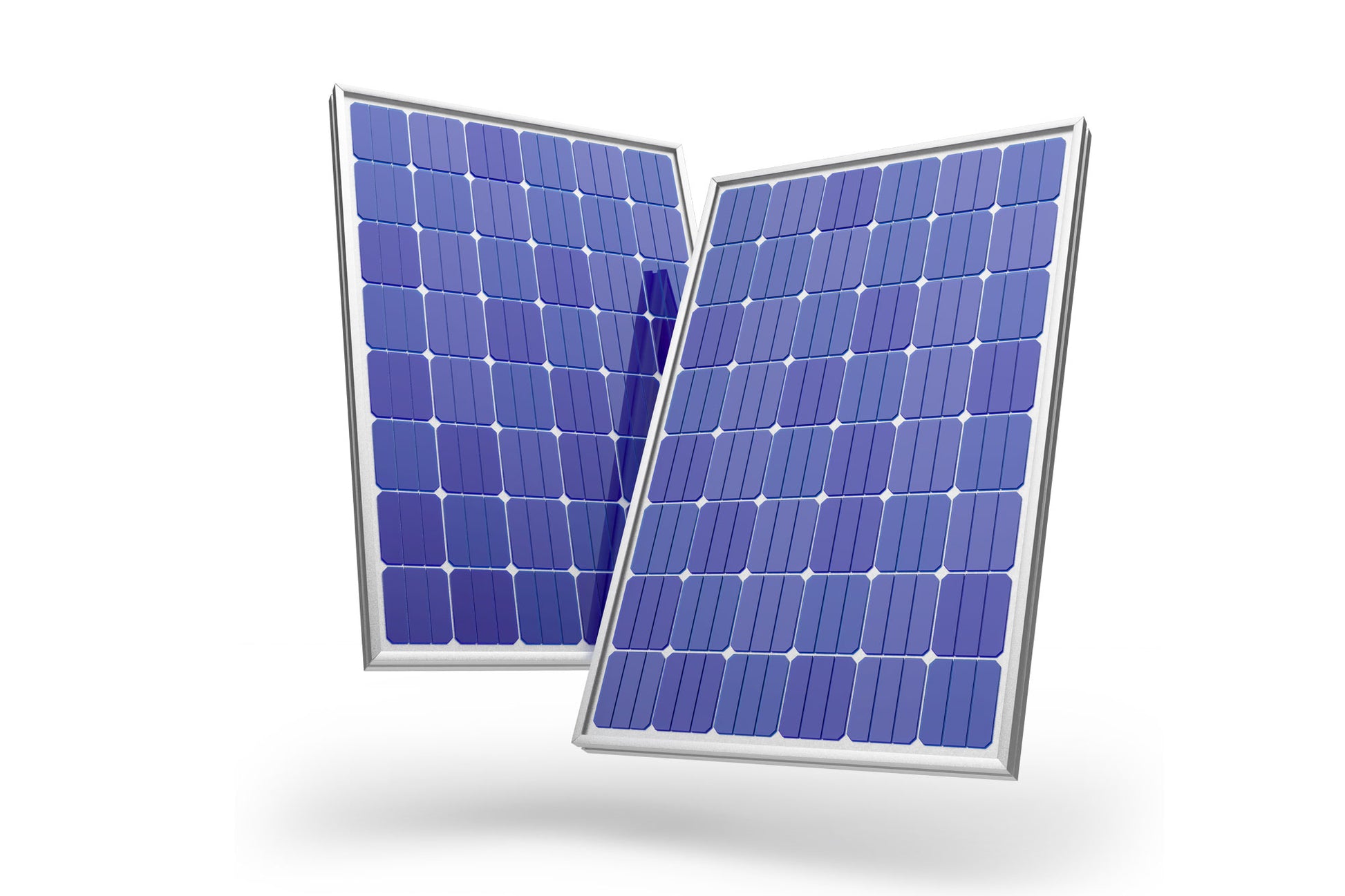

550wp Half cut cells Mono perc Monofacial solar module
Regular price
Rs. 12,440.00
Sale price
Rs. 12,440.00
Regular price
Unit price
550wp Half cut cells Mono perc Monofacial solar module
Regular price
Rs. 12,440.00
Sale price
Rs. 12,440.00
Regular price
Unit price
Product description
Shipping & Return
Embrace the power of the sun and bring sustainable energy into your place with our cutting-edge Solar Plate. Designed for efficiency, durability, and ease of use, this solar panel is your gateway to harnessing the sun's energy to power your stuff.
| Weight: | 32.50 KGS (Can be varied - to be provided by client) |
| Width: | 2278mm |
| Height: | 1134mm |
| Depth: | 3.50 (cm) |
| Minimum Purchase: | 1 Kw |
| Shipping: | Calculated at Checkout |
| Replacement Policy: | 7 Day Replacement Policy On Breakage Case Only |
Mechanical Characteristrics:
| Cell Type | P-Type Mono-Crystalline |
| No. Of Cells | 144(6*24) |
| Dimensions | 2278*1134*35mm |
| Weight | 28.9Kg |
| Front Glass | 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | TUV 1*4.0mm (+):400 mm-300mm (+-10mm) or Customized Length |
Cell Specification:
| STC | NOCT | |
| Max. Power(Pmax) | 550Wp | 409Wp |
| Maximum Power Voltage(Vmp) | 42.15 | 38.55 |
| Maximum Power Current(Imp) | 13.06 | 10.63 |
| Open-Circuit Voltage(VoC) | 50.12 | 46.6 |
| Short-Circuit Current(IsC) | 13.81 | 11.28 |
| Module Efficiency(%) | 21.30% | |
| Maximum System temperature | -40°C ≈+ 85°C | ||||||||||
| Maximum System Voltage | 1000/1500VDC(IEC) | ||||||||||
| Maximum Series Fuse Rating | 25A | ||||||||||
| Power Intolreance | 0 ≈ +3% | ||||||||||
| Temperature Coefficients of Pmax | -0.35% /°C | ||||||||||
| Temperature Coefficients of VoC | -0.28% /°C | ||||||||||
| Temperature Coefficients of Isc | 0.048% /°C | ||||||||||
| Nominal operating cell temperature(NOCT) | 45±2°C | ||||||||||
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
Installation Charges
|
Power |
Price |
|
1 KW |
₹ 5,500 |
|
2 KW |
₹ 10,000 |
|
3 KW |
₹ 16,500 |
|
For more, please contact us. |
|
Warranty Information
12 Years Product Warranty & 27 Years Power Output Warranty
